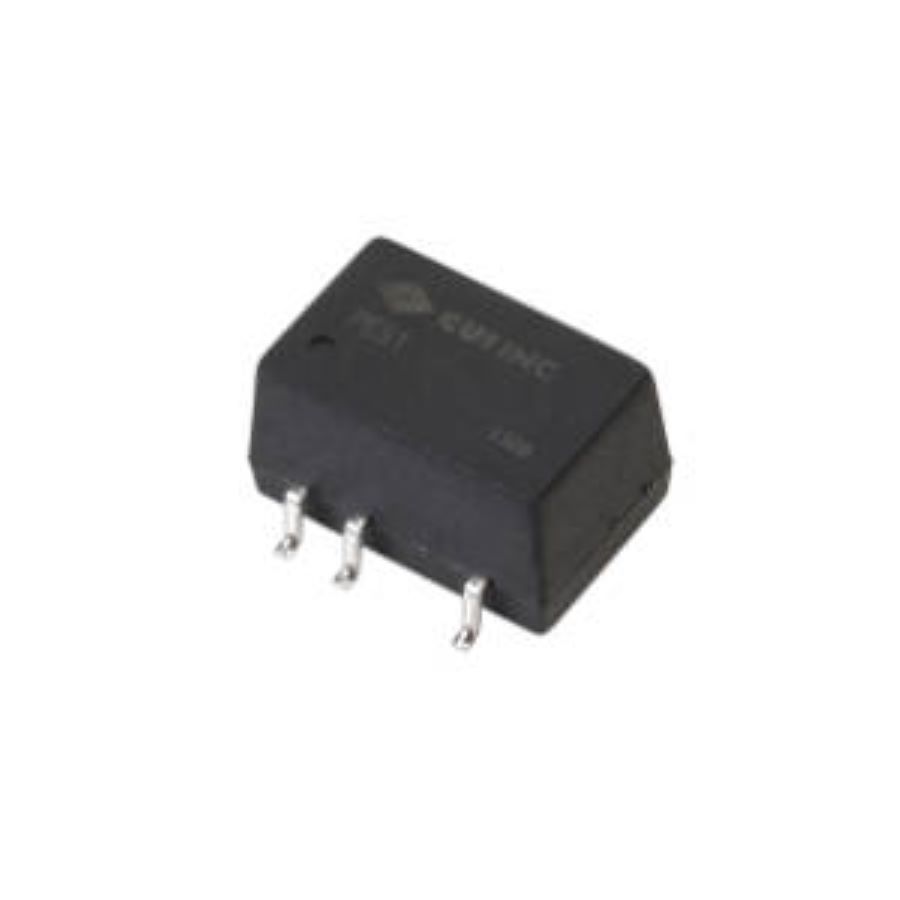

PES1-S12-S5-M-TR
Manufacturer:
Same Sky
Mfr.Part #:
PES1-S12-S5-M-TR
Datasheet:
Description:
Board Mount Modules SMD-8 Module, 5 Leads SMD/SMT Voltage - Output 1:5 V 80 %
| Parameter | Value |
|---|---|
| Length | 12.7 mm |
| Width | 8.128 mm |
| Max Operating Temperature | 105 °C |
| Min Operating Temperature | -40 °C |
| Height | 7.366 mm |
| Packaging | Reel |
| Lead Free | Lead Free |
| RoHS | Compliant |
| Weight | 1.6 g |
| Features | SCP |
| Min Input Voltage | 10.8 V |
| Output Voltage | 5 V |
| Max Power Dissipation | 1 W |
| Max Output Current | 200 mA |
| Max Input Voltage | 13.2 V |
| Number of Outputs | 1 |
| Isolation Voltage | 3 kV |
| Output Power | 1 W |
| Efficiency | 80 % |
| Voltage - Output 1 | 5 V |
| Isolation | Isolated |
Stock: 171
Distributors
pcbx
pcbxUnit Price$4.23703
Ext.Price$4.23703
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $4.23703 | $4.23703 |
| 10 | $4.13017 | $41.30170 |
| 25 | $3.89250 | $97.31250 |
| 50 | $3.83914 | $191.95700 |
| 100 | $3.78648 | $378.64800 |
| 300 | $3.59709 | $1079.12700 |
| 500 | $3.41716 | $1708.58000 |
| 1000 | $3.41031 | $3410.31000 |
| 3000 | $3.39490 | $10184.70000 |
| 5000 | $3.37954 | $16897.70000 |
